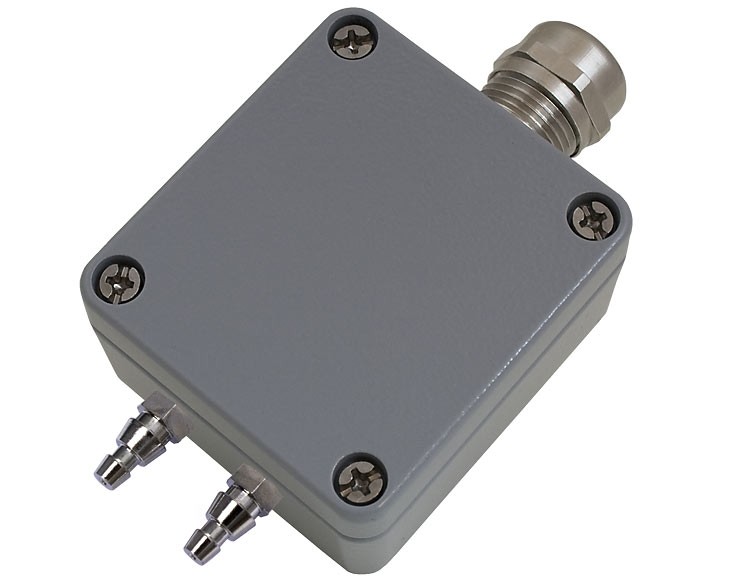

压力传感器 DMU2 / A 记录两个压力出口处的过压、欠压和压差，并将测量值转换为 0-10 V 和 4-20 mA 的线性输出信号。 可选择8种不同的刻度，使用创新的拨码开关技术可以自由切换。 压力传感器的输出衰减（0 秒/1 秒/5 秒/10 秒）也可以使用 DIP 开关进行选择。 对于零点的手动校准，压力传感器只需按一下按钮即可在原位执行零点平衡。 如果需要，可以使用 SPAN 控制器对压力传感器进行原位精细校准。 铝制外壳确保了极高的机械坚固性，并带有 EMS 螺纹，可轻松安全地进行符合 EMC 的接线。

-5000 ... + 5000 帕

EMC螺纹

每个设备 8 种不同的秤

0-10 伏，4-20 毫安

输出衰减 0 秒 / 1 秒 / 5 秒 / 10 秒 通过 DIP 开关可选择

型号：

DMU2/A-I/V1 0...+/-500 Pa 4-20 mA without display

DMU2/A-I/V2 0...+/-5000 Pa 4-20 mA without display

DMU2/A-U/V1 0...+/-500 Pa 0-10 V without display

DMU2/A-U/V2 0...+/-5000 Pa 0-10 V without display

DMU2/A-U/V3 0...+/-100 Pa 0-10 V without display

Pressure type positive, negative or differential pressure

Medium air, non-aggressive, non-flammable, non-condensing gases

Measurement range pressure V1: 0...+/-500 Pa, V2: 0...+/-5000 Pa, V3: 0...+/-100 Pa

Scales V1: 0...+/-100, 0...+/-200 Pa, 0...+/-300 Pa, 0...+/-500 Pa; V2: 0...+/-1000, 0...+/-2000 Pa, 0...+/-3000 Pa, 0...+/-5000 Pa; V3: 0...+/-25, 0...+/-50 Pa, 0...+/-75 Pa, 0...+/-100 Pa

Accuracy ±3,0% FS (at 20°C)

Temperature dependency ±2,5% FS / 10 K

Linearity inaccuracy ±1,0% final value

Long term stability ±1% FS/year

Zero-point adjustment max. +2% final value

Offset ±5% from the selected scale by 270° potentiometer

Reaction rate < 1 s, at 5% alteration relating to final value

Output attentuation 0 s / 1 s / 5 s / 10 s selectable by DIP switch

Sensor protection mounted inside housing

Running-in time < 30 min at initial operation because of tempering

Supply voltage analog 0-10 V 24 V AC/DC (±5%)

Supply voltage analog 4-20 mA 15...36 V DC (Ubmin = 15 V + RLoad*0,02A)

Current consumption at 0-10 V typ. 15 mA

Current consumption at 4-20 mA max. 20 mA / output

Analogue output 0-10 V 3-wire connection, min. load resistance 100 kOhm

Analogue output 4-20 mA 2-wire connection (transmitter), max. RLoad(Ohm) = (+Ub - 15 V) / 0,02 A

Electrical connection screw terminals max. 1,5 mm²

Pressure resistance 5-times of measurement range

Housing die-cast (aluminium), colour silver grey like RAL 7001

Dimensions Housing: L 64 x W 58 x H 34,5 mm

Cable gland M16x1,5 high-strength cable gland with strain relief and EMC grounding

Protection type IP65, IP20 if pressure connection port is open

Protection class III

Working range r.H. 0...98% r.H. in contaminant-free, non-condensing air

Working temperature 0...+50°C

Storage temperature 0...+50°C

Installation Housing: screw fastening, Pressure connection: 2 plastic duct connecting nipple with fastening screws and 2 m PVC tube Ø 6 mm (in scope of delivery)

Manual zero-point adjustment The zero point adjustment is started by pressing the button on the circuit board (push 10 s until LED stops flashing or by the display version the countdown 10-0 is completed). Before, a continuous operation of at least 1 hour must be sure, the offset must be in the middle position and the pressure inputs P+ and P- must be an obvious offense to the environment. The successful calibration will be signalized by 5 sec durable lightning of the LED.

Approvals CE, EAC, RoHS
