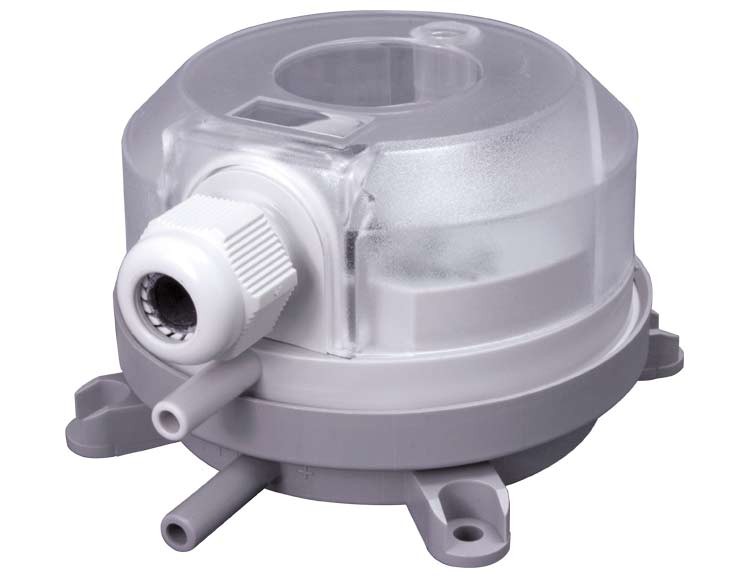

DG / H 压差传感器测量压力输入之间的过压、低压和压差，并将其转换为标准化的 0-10 V 或 4-20 mA 输出信号。 压力探头提供 2 个压力范围，可通过跳线交替调节。 也可提供额外的常开触点（闭合器）。

0 ... 250 kPa

每个版本 2 个测量范围

0-10 V, 4-20 mA, NOC

Medium air and non-aggressive gases

Measurement range pressure 0...+/-50 Pa, 0...25 Pa, 0...50 Pa, 0...100 Pa, 0...250 Pa, 0...500 Pa, 0...1 kPa, 0...2,5 kPa, 0...5 kPa, 0...10 kPa, 0...25 kPa, 0...50 kPa, 0...100 kPa, 0...250 kPa

Accuracy ±1,5% FS

Response time (t90) 100 ms or 1 s, adjustable by jumper

Linearity inaccuracy ±1,0% final value

Position dependence < ±0,02% final value/g

Long term stability < ±0,5% FS/year

Zero-point adjustment manu: The zero-point adjustment of the output signal can be made by pushing the M-Button in depressurized state.

auto: The pressure transducer runs at regular intervals an automatic zero-point adjustment. Thus, the drift behavior is dramatically improved and maintenance effort will be minimized.

Supply voltage 24 V AC/DC

Current consumption at 0-10 V typ. 10 mA

Current consumption at 4-20 mA max. 20 mA / output

Analogue output 0-10 V 3-wire connection

Analogue output 4-20 mA 3-wire connection

Alarm output normally open contact (closer), NPN, 100 mA maximal, < 35 V DC

Electrical connection screw terminals max. 1,5 mm²

Housing switch housing with process connection P2 of ABS, light grey, connection part with process connection P1 of POM, white

Cable gland M16x1,5 high-strength cable gland with strain relief

Display optional LED-Display (red), to display the measured values on location

Weight 145 g

Protection type IP54

Protection class III

Working range r.H. 0...95% r.H. in contaminant-free, non-condensing air

Working temperature 0...+50°C

Storage temperature -10...+70°C

Accessories connection set (1 x PVC-hose 2 m, 2 x duct connection nippel incl. screws) in scope of delivery

Installation Housing: screw fastening, Pressure connection: 2 plastic duct connecting nipple with fastening screws and 2 m PVC tube Ø 6 mm (in scope of delivery)

Installation position any

Approvals CE, EAC, RoHS

型号：

DG/H-05D 0...25 Pa, 0...50 Pa auto 0-10 V / 4-20 mA

DG/H-10 0...100 Pa, 0...250 Pa manu 0-10 V / 4-20 mA

DG/H-10D 0...100 Pa, 0...250 Pa manu 0-10 V / 4-20 mA

DG/H-20 0...250 Pa, 0...500 Pa manu 0-10 V / 4-20 mA

DG/H-20D 0...250 Pa, 0...500 Pa manu 0-10 V / 4-20 mA

DG/H-30 0...500 Pa, 0...1000 Pa manu 0-10 V / 4-20 mA

DG/H-30D 0...500 Pa, 0...1000 Pa manu 0-10 V / 4-20 mA

DG/H-40 0...1 kPa, 0...2,5 kPa manu 0-10 V / 4-20 mA

DG/H-40D 0...1 kPa, 0...2,5 kPa manu 0-10 V / 4-20 mA

DG/H-50 0...5 kPa, 0...10 kPa manu 0-10 V / 4-20 mA

DG/H-50D 0...5 kPa, 0...10 kPa manu 0-10 V / 4-20 mA

DG/H-60 0...25 kPa, 0...50 kPa manu 0-10 V / 4-20 mA

DG/H-60D 0...25 kPa, 0...50 kPa manu 0-10 V / 4-20 mA

DG/H-70 0...100 kPa, 0...250 kPa manu 0-10 V / 4-20 mA

DG/H-70D 0...100 kPa, 0...250 kPa manu 0-10 V / 4-20 mA
